“CP Plus CP-GPC-T24PL2-S 2.4MP Full HD IR Guard Bullet Camera – 20m Night Vision” has been added to your cart. Continue shopping

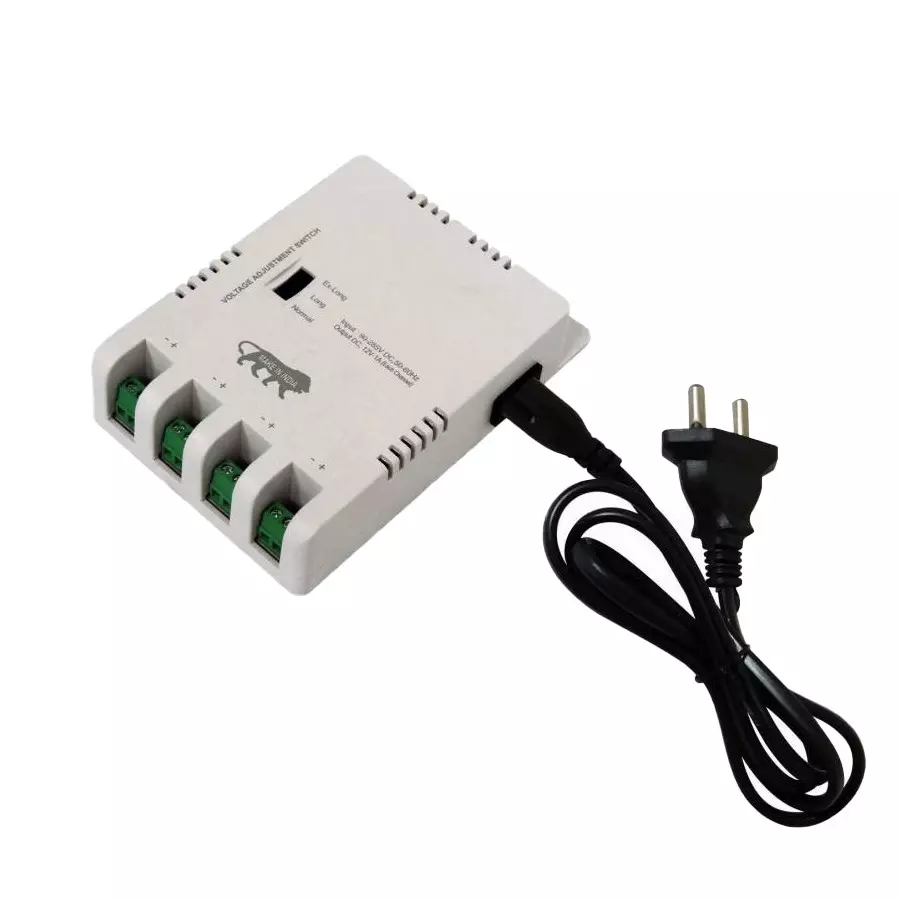

ERD SMPS AD-11 (12V 5AMP)
Click to enlarge
Home E-Surveillance CCTV Accessories ERD SMPS AD-11 (12V 5AMP): Efficient 4 Channel CCTV Power Supply
CP PLUS 4 Port PoE Switch CP-TNW-HP4H1-6 High Performance Networking 6KV Surge Protection
CP PLUS 4 Port PoE Switch CP-TNW-HP4H1-6 High Performance Networking 6KV Surge Protection ₹2,689.00
Back to products
ERD SMPS Adaptor PS-20 (12V DC-2A)
ERD SMPS Adaptor PS-20 (12V DC-2A): Reliable Power Supply Solution ₹358.00

ERD SMPS AD-11 (12V 5AMP): Efficient 4 Channel CCTV Power Supply

₹817.00

The PS001 SMPS Adaptor is a reliable power supply device designed for various applications. It operates at a frequency of 50-60 Hz and supports an input voltage range of 90-285V DC, delivering an output voltage of 12V with a current capacity of 5 Amps. The adaptor is grey in color and features 4 power supply channels. With compact dimensions of 9.3×14.3×3.4 cm, it is easy to install and suitable for different setups. Manufactured by UDAAN in India, this adaptor ensures stable and efficient performance for your power needs.

For bulk order contact us.

Compare
Add to wishlist
SKU: E1E67365 Categories: CCTV Accessories, E-Surveillance Brand: ERD
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description






AD-11 4 Channel CCTV Power Supply Specifications

AD-11 4 Channel CCTV Power Supply Specifications

  • The AD-11 is a 4-channel CCTV power supply suitable for security cameras.
  • Offers two monitoring options: power LED for individual channel indication or connecting a monitor for all four channels.
  • Each channel has its own drive with a resettable fuse for system protection.
  • Features highly integrated SMPS switching technology to prevent interference from multiple output signals.
  • Includes surge protection, over temperature protection, short circuit auto restart, and cable compensation switches for voltage boosting.
  • Designed for indoor installation, providing continuous voltage output for long-term cost savings and reliable performance.
  • The PS001 has four DC outputs, each delivering 1 amp output current, with a maximum overall output of 4 amps.
  • Utilizes an isolated buck converter for a highly stable power supply with low ripple and noise levels, reducing interference at critical components like cameras.
  • Equipped with a power LED monitor for individual camera channel identification, indicating power status.
  • Individual camera drives feature an integrated drive IC design with resistors and capacitors to drive cameras from 12V DC input sources directly.


Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ERD SMPS AD-11 (12V 5AMP): Efficient 4 Channel CCTV Power Supply” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
