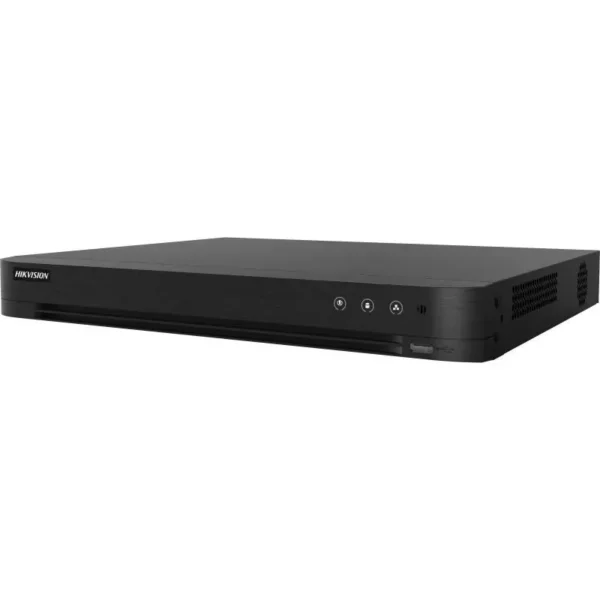

HikVision DS-7232HGHI-M2 32 Channel 720p 1U H.265 DVR
- Model: DS-7232HGHI-M2
- Type: 32 Channel 720p 1U H.265 DVR
- Processor: Embedded processor
- Operating System: Embedded LINUX
- IP Camera Input: Up to 18 channels, each channel up to 5 MP
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Video Display Split: 1/4/8/9/16
- Video Output: 1 HDMI (up to 1080p), 1 VGA
- Video Resolution: 1920×1080, 1280×1024, 1280×720
- Video Recording:
- Main stream: 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
- Frame Rate: Up to 15 fps for 1080p lite/720p lite/WD1/4CIF/VGA; 25 fps for CIF
- Bit Rate: 32 Kbps to 4 Mbps per channel
- Audio Compression: G.711u
- Audio Input: 1 channel, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1 channel, RCA (Linear, 1 KΩ)
- Motion Detection: Deep learning-based human and vehicle target classification
- Video Loss: Support
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 2 SATA ports, up to 10TB each
- Camera Blank: Support
- Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording Mode: Manual, Schedule (Regular, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time/Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode: USB Device/Network
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Max User Account: 128 users
- Record Interval: 160 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec
- Ethernet: 1 RJ-45 port (100Mbps)
- Interface Ports: 2 USB Ports (USB 2.0)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, InstaOn, IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC12V/3.33A
- Power Consumption: ≤ 18W (without HDD)
- Working Temperature: -10°C to 55°C (14°F to 131°F)
- Working Humidity: 10% to 90%
- Dimension: 384mm × 317mm × 52mm (15.1″ × 12.5″ × 2.0″)
- Weight: ≤ 2.2 kg (4.9 lb) without HDD
