- Auto Adaptive: HDCVI/AHD/TVI/CVBS/IP signals
- Support: Up to 6MP IP Camera
- Video Compression: H.265+/H.265 dual-stream
- Max Incoming Bandwidth: 96Mbps
- Recording: All channel 1080P Non-Realtime
- Hard Disk: 1 SATA HDD up to 6TB, 2 USB Ports
- Video Output: HDMI / VGA simultaneous
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Processor: Embedded processor
- Operating System: Embedded LINUX
- IP Camera Input: 16+8 channels, each channel up to 6MP
- Two-way Talk: Reuse audio in/out, RCA
- User Interface: GUI
- Video Input: 16 channels, BNC
- Video Output: 1 HDMI, 1 VGA
- Compression: H.265+/H.265/H.264+/H.264
- Video Resolution:
- HDMI: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
- VGA: 1920×1080, 1280×1024, 1280×720
- Video Recording:
- Main Stream: 1st & 2nd channels 5M-N (1~10fps); other channels 4M-N/1080P (1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
- Sub stream: CIF/QCIF (1~15fps)
- Video Display Split: 1/4/8/9/16
- Audio Input: 1 channel, RCA
- Audio Output: 1 channel, RCA
- Motion Detection: MD Zones: 396 (22 × 18)
- Video Loss: Supports
- Camera Blank: Supports
- Hard Disk: 1 SATA port, up to 6TB
- Smart Phone: iPhone, iPad, Android Phone
- Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
- Recording Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time/Date, Alarm, MD, and Exact Search (accurate to second)
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup Mode: USB Device/Network
- Interface Ports: 1 HDMI, 1 VGA, 2 USB (1 USB 2.0, 1 USB 3.0)
- Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account: 128 users
- Ethernet: 1 RJ-45 Port (1000M)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC12V/2A
- Power Consumption:

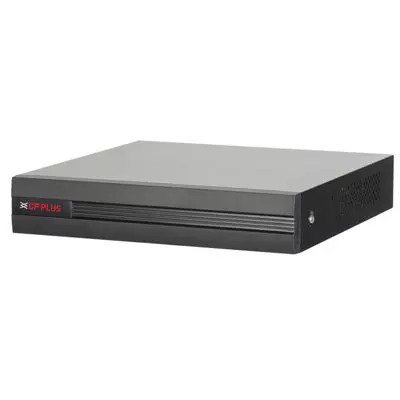

CP PLUS CP-UVR-1601K1-V5 16 Channel 720P x 1080P HDCVR DVR – High-Quality Surveillance Recorder
₹16,814.00
The CP-UVR-1601K1-V5 Digital Video Recorder (DVR) features HDMI video resolutions of 3840×2160, 2560×1440, 1920×1080, 1280×1024, and 1280×720, and VGA resolutions of 1920×1080, 1280×1024, and 1280×720. It has 1 HDMI and 1 VGA video output. The DVR operates on a DC12V/2A power supply and weighs 0.86 kg (860 g) without the hard disk. It includes a graphical user interface (GUI) and supports two-way talk using RCA audio in/out. The resolution is 720×1080 P, with 1 RCA audio input channel. The DVR runs on an embedded LINUX operating system.
