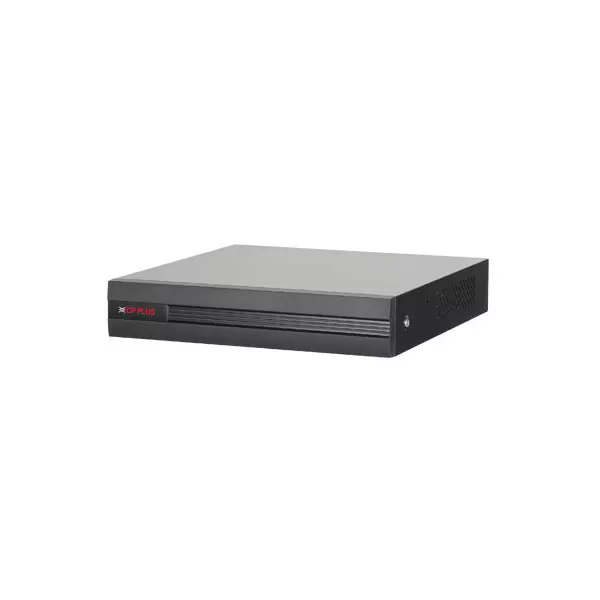

CP PLUS 8 Channel 5 M-N Digital Video Recorder
Click to enlarge
Home E-Surveillance DVR CP PLUS 8 Channel 5 M-N Digital Video Recorder CP-UVR-0801F1-IC – Versatile Surveillance
HikVision 8-Ch Acusense 4 MP Metal Body DVR with 1 SATA iDS-7208HQHI-M1FA - Advanced Surveillance
Best Metal Body DVR - 8 Channel HikVision Surveillance ₹7,622.00
Back to products
HikVision 4-Port 10/100M POE Switch with 2-Port Uplink DS-3E0106P-E M - Reliable and Efficient Network
HikVision 4-Port 10/100M POE Switch with 2-Port Uplink DS-3E0106P-E M - Reliable and Efficient Network ₹2,914.00

CP PLUS 8 Channel 5 M-N Digital Video Recorder CP-UVR-0801F1-IC – Versatile Surveillance

₹6,725.00

The CP-UVR-0801F1-IC is a digital video recorder (DVR) that operates on a corded electric power source. It features both HDMI and VGA video outputs and utilizes a graphical user interface (GUI) for user interaction. The DVR supports a single SATA hard disk with a capacity of up to 6TB and offers various resolution options, including 1920×1080, 1280×1024, and 1280×720. It runs on an embedded LINUX operating system and can handle 8+4 camera inputs, each channel supporting up to 6 MP. The device includes 4 BNC channels and is powered by an embedded processor. It consumes less than 7 watts of power without the hard disk and operates on a DC12 V/1.5 A power supply. The recording modes available are manual, scheduled (regular and continuous), motion detection (including video loss and tampering), alarm, and stop. Additionally, it supports two-way audio input via RCA and offers a bit rate range of 32 kbps to 6144 kbps per channel. Backup can be performed using a USB device or network.

For bulk order contact us.

Compare
Add to wishlist
SKU: 2C0151F5 Categories: DVR, E-Surveillance Brand: CP Plus
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description




CP-UVR-0801F1-IC 8Ch. 5M-N Digital Video Recorder

CP-UVR-0801F1-IC 8Ch. 5M-N Digital Video Recorder

  • Model: CP-UVR-0801F1-IC
  • Type: 8Ch. 5M-N Digital Video Recorder
  • Processor: Embedded processor
  • Operating System: Embedded LINUX
  • IP Camera Input: 8+4 channels, each channel up to 6MP
  • Video Compression: AI Instastream/Instastream/H.265/H.264+/H.264
  • Video Display Split: 1/4/8/9
  • Video Channel: 4 channel, BNC
  • Video Output: 1 HDMI, 1 VGA
  • Video Resolution: 1920×1080, 1280×1024, 1280×720
  • Video Recording:
    • Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H D1/CIF (1 fps–25/30 fps)
    • Resolution: 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF
  • Bit Rate: 32 kbps–6144 kbps per channel
  • Audio Compression: G.711A, G.711U, PCM
  • Audio Input: 1 channel, RCA
  • Audio Output: 1 channel, RCA
  • Motion Detection: Support
  • Video Loss: Support
  • Smart Phone: iPhone, iPad, Android Phone
  • Hard Disk: 1 SATA port, up to 6TB
  • Camera Blank: Support
  • Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Recording Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
  • Backup Mode: USB Device/Network
  • Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
  • Max User Account: 128 users
  • Record Interval: 160 min (default: 60 min), Pre-record: 130 sec, Post-record: 10~300 sec
  • Ethernet: 1 RJ-45 port (100Mbps)
  • Interface Ports: 2 USB Ports (USB 2.0)
  • Protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant
  • Power Supply: DC12V/1.5A
  • Power Consumption: <7W (without HDD)
  • Working Temperature: -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
  • Dimension: 198.3mm × 203.4mm × 41.5mm
  • Weight: 0.57kg (without HDD)
