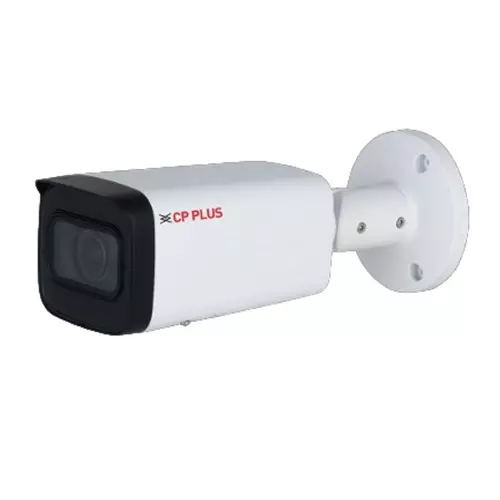

CP PLUS CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera | 60m IR Range
Click to enlarge
Home E-Surveillance CCTV CP PLUS CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera | 60m IR Range
CP Plus CP-UNC-TB51L3-MDS 5MP IR Network Bullet Camera | 2.8mm Lens
CP Plus CP-UNC-TB51L3-MDS 5MP IR Network Bullet Camera | 2.8mm Lens ₹6,813.00
Back to products
CP PLUS 4MP Full HD Network IR Bullet Camera - CP-UNC-TB41ZL6C-VMDS 60m Night Vision 13 Inch Sensor
CP PLUS 4MP Full HD Network IR Bullet Camera - CP-UNC-TB41ZL6C-VMDS | 60m Night Vision, 1/3 Inch Sensor ₹15,575.00

CP PLUS CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera | 60m IR Range

₹12,460.00

White Balance
Auto / Manual
Lens
3.6mm
Type of Product
Bullet Camera
Model No
CP-USC-TC51PL2C
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Weight
0.15Kg
Lens Type
Fixed
Dimension
69.8X 69.8X 149.3 mm
Operating Temperature
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Image Sensor
(1/2.7 Inch) 9.4 mm 5MP CMOS Image Sensor (0.9407cm)
Minimum Illumination
0.02 Lux/F2.0, 30IRE, 0 Lux IR on
Shutter Speed
PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
Effective Pixels
5MP
Maximum Aperture
F2.0
Power
3.7W
S/N Ratio
More than 65dB
Power Source
12V DC ±30%
Auto Iris
Fixed
Close Focus Distance
2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
Casing
Plastic
Viewing Angle
3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
Video Streaming
CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
Gain Control (AGC)
Auto/Manual
Backlight Compensation
BLC / HLC / DWDR
ICR
Auto (ICR)/Manual
Weight (g)
150 g

For bulk order contact us.

Compare
Add to wishlist
SKU: 8CFF1107 Categories: CCTV, E-Surveillance Brand: CP Plus
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

CP PLUS CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera | 60m IR Range

Product Description:

The CP PLUS CP-UNC-TB21ZL6C-VMDS 2MP Full HD Network IR Bullet Camera is a reliable and efficient surveillance solution built for performance in all lighting conditions. With a high-quality 2MP CMOS sensor and DWDR technology, it delivers clear video even in variable light. This camera features an IR range of up to 60 meters, ensuring strong night vision coverage. The fixed 3.6mm lens (optional 2.8mm) offers a wide field of view, while IP67-rated weatherproof housing ensures long-lasting outdoor performance. Added features like a built-in microphone and multi-format video output make it versatile for different setups.


 Key Features:

  • 2MP CMOS Sensor for crisp Full HD surveillance

  • DWDR, 2D-DNR, AGC, BLC, HLC for enhanced image quality

  • 60m IR Range for extended night vision coverage

  • 3.6mm Fixed Lens with 2.8mm optional for wider views

  • Built-in Microphone for audio monitoring

  • Switchable Video Output: CVI/TVI/AHD/CVBS

  • Day/Night (ICR) Functionality for 24/7 surveillance

  • Weatherproof IP67 Rated for reliable outdoor use

  • OSD Menu Control via Coaxial Cable for easy setup
