- Features:
- Deep learning-based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch IP camera input (up to 2 MP)
- Encoding ability up to 1080p lite @ 30 fps
- Max. 1200 m for 720p HDTVI signal
- Auxiliary Interface:
- SATA: 1 SATA interface
- Capacity: Up to 4 TB capacity for each disk
- USB Interface: Rear panel: 2 × USB 2.0
- Alarm In/Out: N/A
- Network:
- Total Bandwidth: 64Mbps
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Remote Connection: 32
- Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Video and Audio:
- IP Video Input: 1-ch (up to 5-ch), up to 1080p resolution, support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input: 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Input: Support
- HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
- Synchronous Playback: 4-ch
- AHD Input: 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
- Two-Way Audio: Reuse the first audio input
- Recording:
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution:
- For 1080p stream access: 1080Plite/720Plite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate:
- Main stream: For 1080p stream access: 1080Plite/720Plite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream: 4CIF@15fps CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate: 32 Kbps to 4 Mbps
- Stream Type: Video, Video & Audio
- Audio Compression

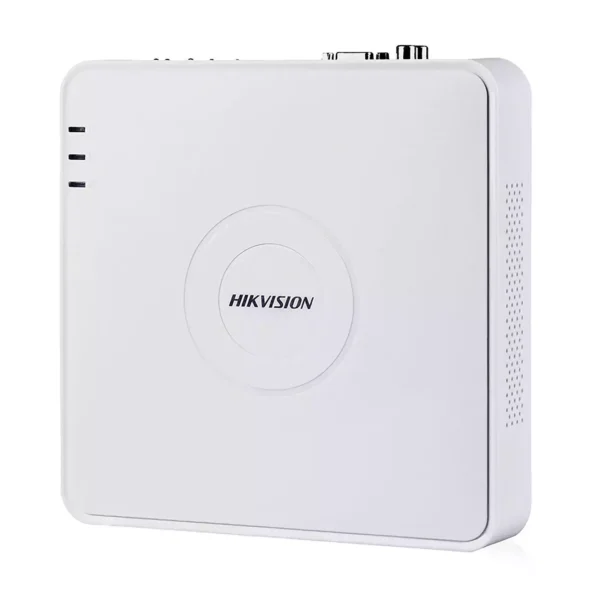

HikVision DS-7104HGHI-K1 Turbo HD Mini DVR – 4 Channel 1080P Lite H.265 Surveillance Recorder
₹3,362.00
The DS-7104HGHI-K1 Digital Video Recorder (DVR) has dimensions of 200 × 200 × 45 mm and operates with a 12 VDC, 1.5 A power supply. It weighs 0.8 kg (800 g) and supports both video and audio streaming with a video bit rate ranging from 32 Kbps to 4 Mbps. The DVR can function within a working humidity range of 10% to 90% and a temperature range of -10 °C to 55 °C (14 °F to 131 °F). It features a network interface with 1 RJ45 10M/100M self-adaptive Ethernet interface and supports 4 channels. The power consumption is ≤ 16 W.
