Best 16 Channel 5MP DVR – Advanced CCTV Camera System

Product Description:

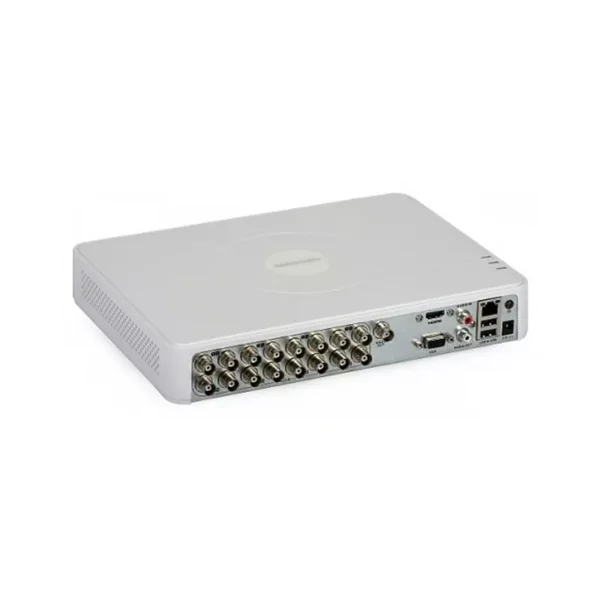

The 16 Channel 5MP DVR from HikVision DS-7A16HQHI-K1 is an advanced CCTV Camera DVR solution designed to meet the demanding needs of large-scale surveillance systems. This 16 Channel 5MP DVR supports up to 16 CCTV Cameras, including both analog and IP cameras, providing comprehensive monitoring for residential, commercial, and industrial spaces. With H.265+ compression technology, this CCTV Camera DVR reduces storage needs by up to 50% while ensuring superior video quality from all your connected CCTV Cameras. The 16 Channel 5MP DVR is capable of supporting HD-TVI, AHD, CVBS, and IP cameras, making it a versatile solution for diverse surveillance setups.

For extended surveillance coverage, this 16 Channel 5MP DVR supports long-distance video transmission, with up to 800m for 1080p signals over UTP cables and up to 1200m for 720p signals over coaxial cables. With a storage capacity of up to 6TB, this CCTV Camera DVR can store vast amounts of video footage, ensuring long-term video retention for enhanced security. The 16 Channel 5MP DVR provides high-definition recording with resolutions up to 5MP for IP cameras and supports video encoding for both analog and IP channels at resolutions up to 1080p. Whether you’re using analog CCTV Cameras or IP-based cameras, this 16 Channel 5MP DVR is the perfect choice for reliable, high-performance video surveillance.

Key Features:

• 16 Channel Support: Connect up to 16 CCTV Cameras, providing extensive, multi-channel surveillance coverage.
• 5MP High-Resolution: Capture clear, high-definition footage with 5MP resolution, ensuring detailed video from your CCTV Cameras.
• H.265+ Compression: Reduces storage requirements by 50% while maintaining high-quality video, ensuring efficient use of storage in your 16 Channel 5MP DVR.
• Wide Camera Compatibility: Supports HD-TVI, AHD, CVBS, and IP cameras, allowing you to mix and match different types of CCTV Cameras in your system.
• Long-Distance Transmission: Transmit video over UTP cables up to 800m for 1080p and coaxial cables up to 1200m for 720p, ensuring reliable video signal delivery for your CCTV Cameras.
• High-Quality Video Recording: Supports analog streams at 10fps @ 720p or 30fps @ 1080p and IP streams at 15fps @ 720p or 30fps @ 1080p for smooth, detailed footage.
• 6TB Storage Capacity: Store large amounts of surveillance footage, with up to 6TB of internal storage, providing ample space for your CCTV Camera DVR system.
• Multi-User Access: Allows multiple users to access and view recorded footage from various locations, enhancing accessibility and convenience.
• Firmware Upgradeable: Keep your 16 Channel 5MP DVR up to date with the latest features through easily upgradeable firmware.
• Built-in Video Input: Directly connect HD-TVI, AHD, CVBS, and 4MP IP CCTV Cameras to this 16 Channel 5MP DVR for streamlined, efficient recording.
• Environmentally Designed: Operates effectively within a wide temperature range of -10°C to +55°C and humidity levels of 10% to 90%, making it suitable for various environmental conditions.

Detailed Description in Bullet Points

• Video Input and Transmission:
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input.
  • Supports up to 2 channels of 4 MP IP cameras input.
  • Long-distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal.
• Compression and Recording:
  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras.
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras.
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs.
• Additional Features:
  • Built-in video input and transmission for connecting HD-TVI/AHD/CVBS security cameras and 4 MP IP cameras.
  • Receives a maximum of 1080p or 720p video at a distance of 800 meters via UTP cables.
  • Transmits video streams with resolution up to 2 MP via coaxial cable, covering up to 1200 meters.
  • H.265+ stream compression reduces storage costs by 50% while improving image quality.
  • Analog stream recorded at 10 fps @ 720p and 30 fps @ 1080p.
  • IP stream recorded at 15 fps @ 720p and 30 fps @ 1080p.
• Video Recorder (NVR):
  • Allows footage from IP cameras to be recorded onto an internal storage device.
  • Overwrites oldest footage when storage is full.
  • Enables multiple users to access the same footage from different locations.
  • Multiple video inputs for connecting various types of cameras.
  • Supports upgradeable firmware for compatibility with new products.
