CP Plus CP-ANW-GPI4F2-46 48VDC PoE PortsReliable Network Switch
Click to enlarge
Home E-Surveillance CCTV Accessories CP Plus CP-ANW-GPI4F2-46 48VDC PoE PortsReliable Network Switch
CP PLUS 4 Port PoE Switch CP-TNW-HP4H1-6 High Performance Networking 6KV Surge Protection
CP PLUS 4 Port PoE Switch CP-TNW-HP4H1-6 High Performance Networking 6KV Surge Protection ₹2,689.00
Back to products
ERD SMPS Adaptor PS-20 (12V DC-2A)
ERD SMPS Adaptor PS-20 (12V DC-2A): Reliable Power Supply Solution ₹358.00

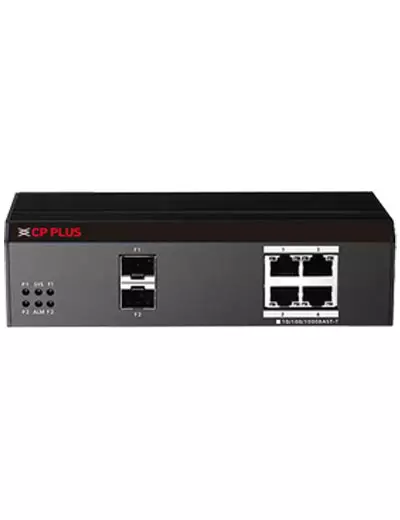

CP Plus CP-ANW-GPI4F2-46 48VDC PoE PortsReliable Network Switch

₹16,814.00

The CP-ANW-GPI4F2-46 PoE Ports device is designed to operate efficiently under a wide range of environmental conditions. It supports a humidity range of 5% to 95% (non-condensing) and can function in temperatures from -40°C to 75°C. The device has compact dimensions of 134x30x90 mm and operates with a power supply of 48V. This makes it a reliable choice for various applications requiring Power over Ethernet (PoE) capabilities.

For bulk order contact us.

Compare
Add to wishlist
SKU: 647057C0 Categories: CCTV Accessories, E-Surveillance Brand: CP Plus
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description






CP-ANW-GPI4F2-46 PoE Ports Specifications

CP-ANW-GPI4F2-46 PoE Ports Specifications

  • Complies with Ethernet standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3af/at
  • Optical Ports: 2 (1000Base-X SFP)
  • RJ45 Ports: 4 (10/100/1000Base-Tx)
  • Supports dual DC power backup with built-in overcurrent protection
  • IP40 grade protection with corrugated high-strength metal housing
  • Power supply supports anti-reverse connection
  • Transmission Distance: Store and forward
  • PoE Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3af/at
  • MAC Address List: 8k
  • Dimensions: 134mm (L) × 30mm (W) × 90mm (H)
  • Operating Temperature: -40°C to 75°C
  • Humidity: 5% to 95% (non-condensing)
  • Power Source: 48VDC
  • Net Weight: 0.5kg
